Sheet: Maximum Size of 1220 x 2440mm & Thickness from 0.5-100 mm.
Rod: Maximum Size of 1000 mm with 6-250 mm OD Thickness available.
Tube: Max Size 1200 mm with ID thickness of 25-350 mm available
Components: As per drawings and Specifications.

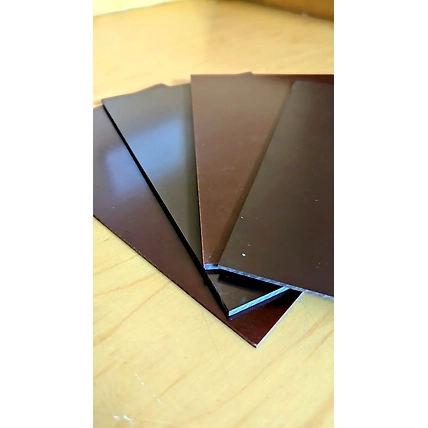

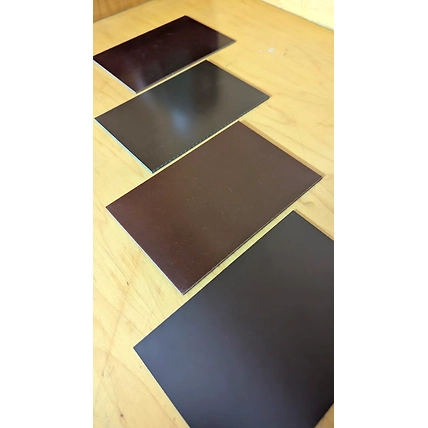

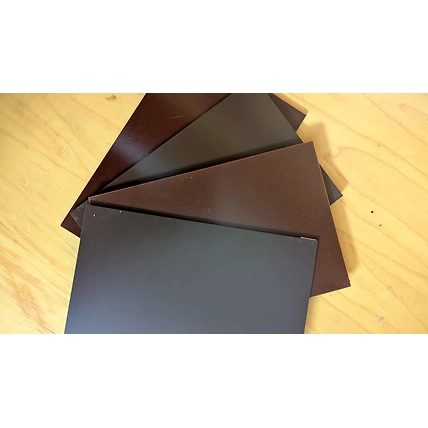

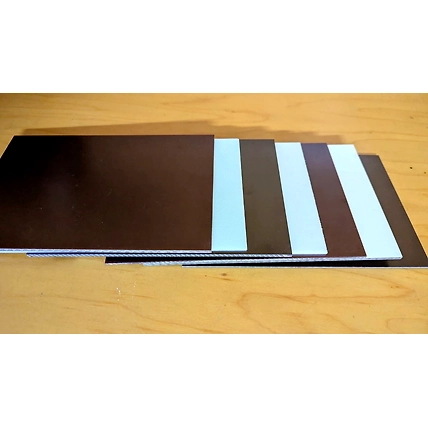

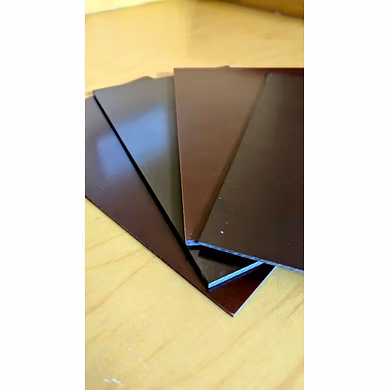

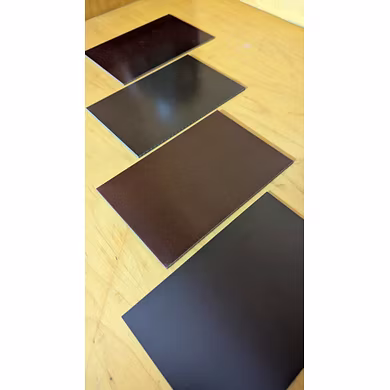

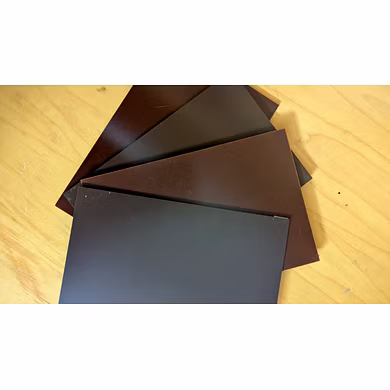

Paper Laminate sheets are made from layers of Kraft Paper impregnated with specifically
formulated phenolic/melamine resins, and bonded together under heat and pressure to
produce a thermoset composite.
Offers enhanced mechanical, electrical, electrostatic dissipative, or fire performance.
The properties and cost-effectiveness of these products often make them insulators of
choice in low/high-voltage, dry-service electrical equipment.
Sheets, Rods, Tubes, and Components are available in multiple sizes and thicknesses.
Grades: P1, P2, P3, FR2 (X,XX,XXX,XP) (As per IS & NEMA Standards).
